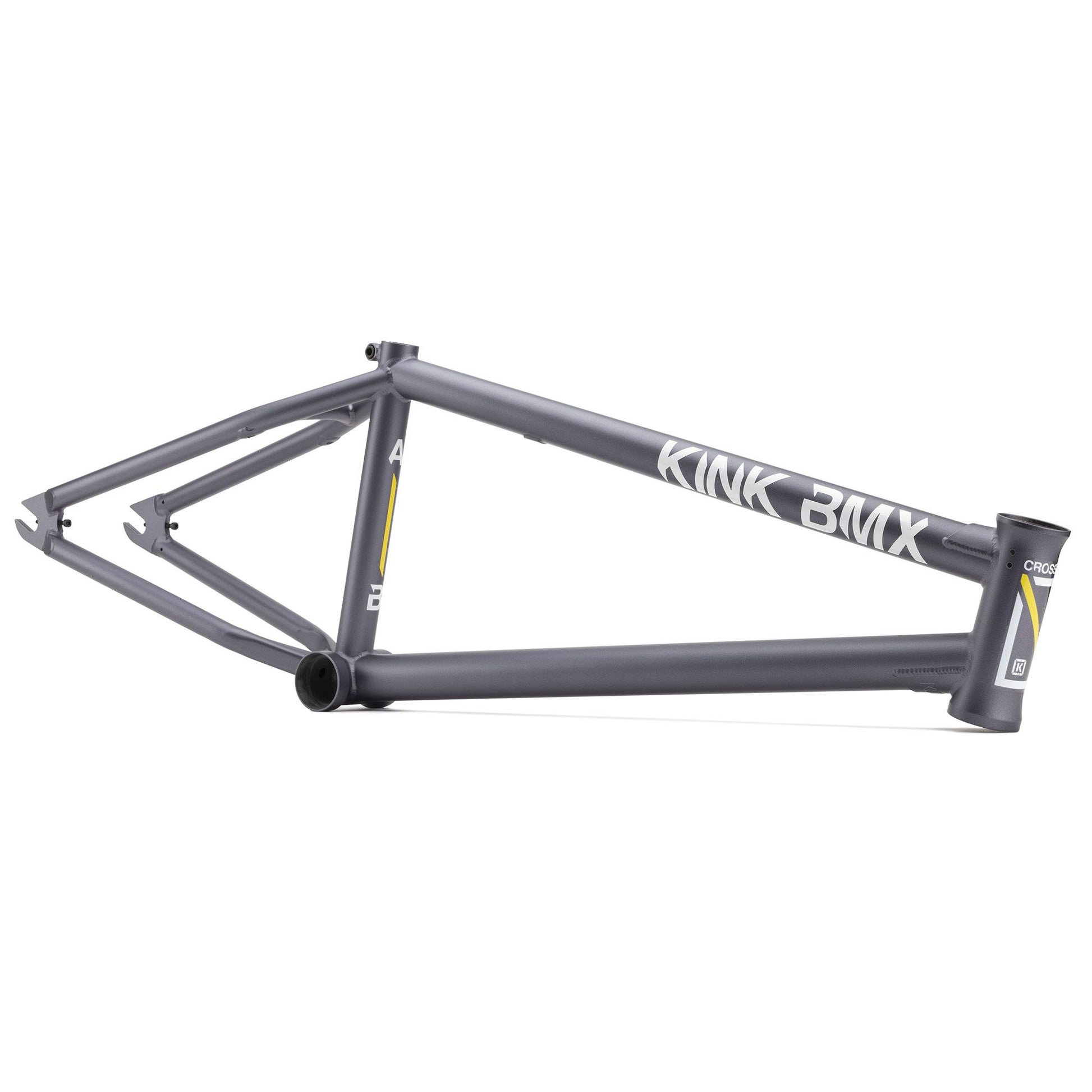

KINK CROSSCUT FRAME
GEOMETRY
| Toptube Sizes | 20", 20.5”, 20.75”, 21”, 21.25" |
| Chainstay Length | 12.5" Slammed |
| Bottom Bracket Height | 11.6" |
| Standover Height | 9.25" |
| Headtube Angle | 75.5° |
| Seattube Angle | 71° |
| Headtube Height | 5" |
TECH SPEC
| Material | 100% 4130 Chromoly Tubing |
| Headtube | Integrated Campy Spec |
| Dropouts | Laser Cut with Integrated Chain Tensioners |
| Bottom Bracket | Internally and Externally Machined Mid BB |
| Braking | Removable Through-Bolt Brake Mount System |
| Particulars | Toptube and Downtube Gussets Integrated Seat Clamp Investment Cast Chainstay Yoke |
| Weight | 4lb 15oz (20.5") |
